AirHeat v2

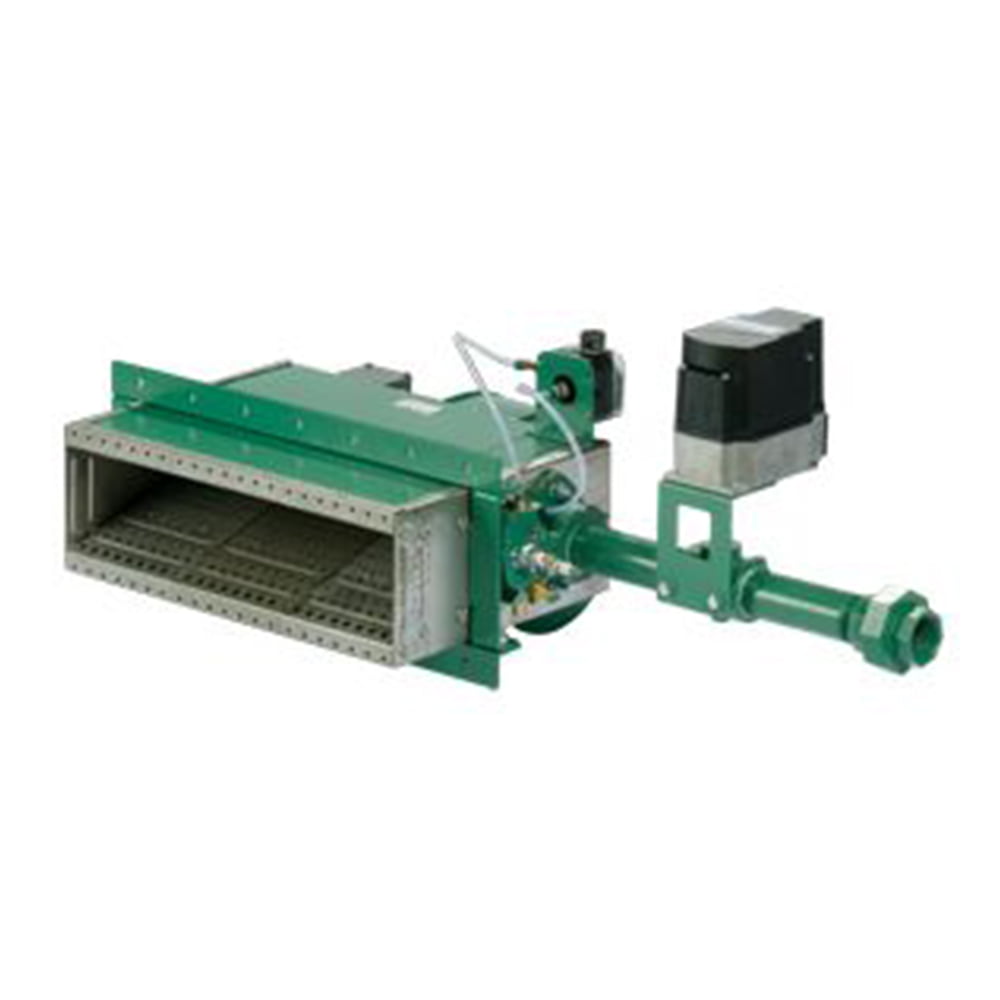

AirHeat Burners are Ideal for Generating a Large Volume of Clean Hot Air As packaged line burners, Eclipse AirHeat burners is ideal for generating a large volume of clean, hot air. Applications include ovens, dryers, fume incinerators, and similar industrial equipment. In addition, the AirHeat burner can also be ordered without a blower for use in re-circulating air applications. These burners provide simple, reliable operations, plus lower CO emissions than other competitive air heating burners. All models feature an integral combustion air blower mounted on the burner’s steel case. By supplying the correct air volume and pressure to the burner, this blower allows a stable operation over a wide range of duct velocities without the need to install a profile plate around the burner.

Category: Tags: ,

Features & Benefits:

  • Ready for the world AirHeat burners combine advanced engineering with installation and operational features that are truly world-class.
  • Can be direct spark ignited.
  • Does not require low-fire bypass air, eliminating the need for piping and check valve.
  • Simplified set-up with pressure taps for gas, air, and chamber.
  • Inputs up to 1.0MM Btu/hr/LF.
  • Operate on any commercially available gas—natural gas, propane, butane, and propane/butane mixture.
  • Aluminum castings eliminate the need for special corrosion-resistant manifolds.
  • Burner mounting arrangements include duct mounting, slot firing, and sealed flange mounting with insertion depths up to 6”.
