Features :
• Replace M744S, T, Y and M745S, T, Y Motors.
• M7284, M7281 are 150 lb.-in. non-spring return; M7294 is 300 lb.-in. non-spring return; M7285, M7282 are 60 lb-in. spring return.
• Oil-immersed motor and gear train for reliable performance and long life.
• Wiring box provides NEMA 3 weather protection.
• Quick-connect terminals standard—screw terminal adapter available.
• Adapter bracket for matching shaft height of older motors is standard with replacement motors.
• Die-cast aluminum housing.
• Models are available with integral auxiliary switches.
• Models are available with adjustable zero and span.
Products
Control
Motors

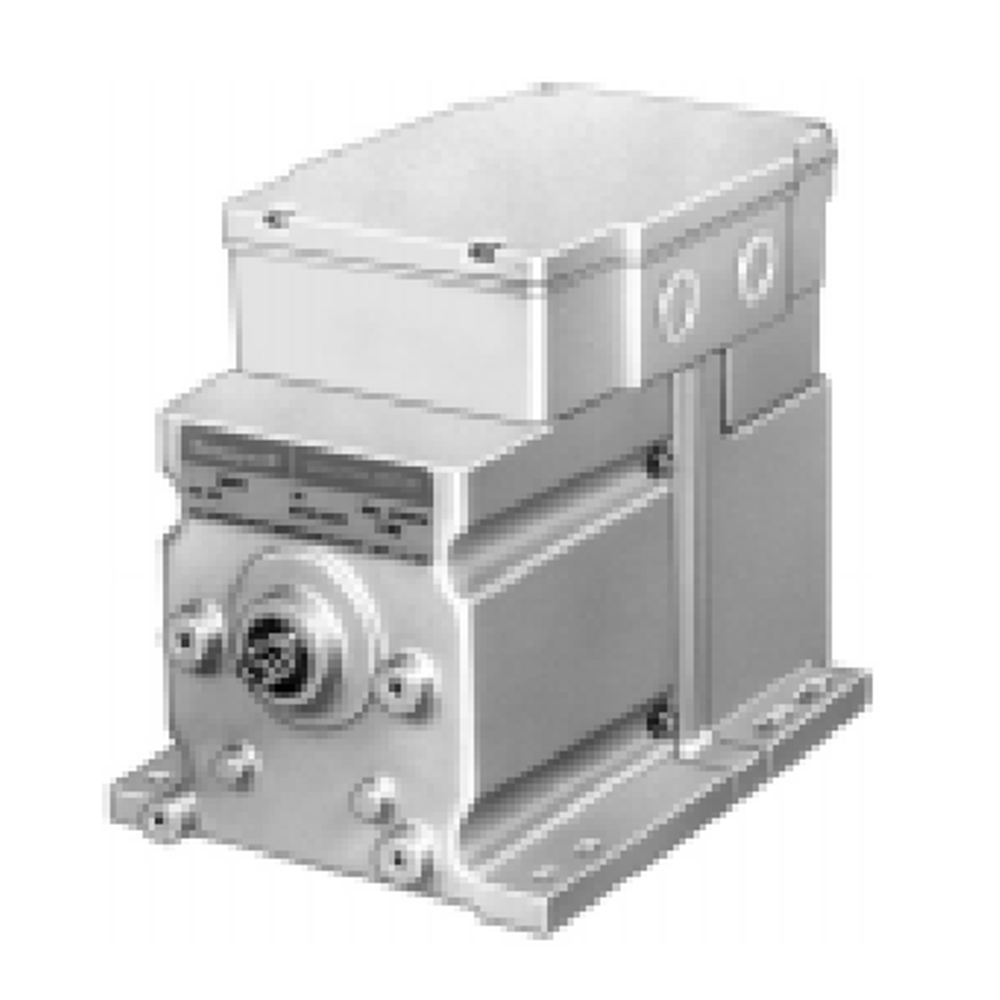

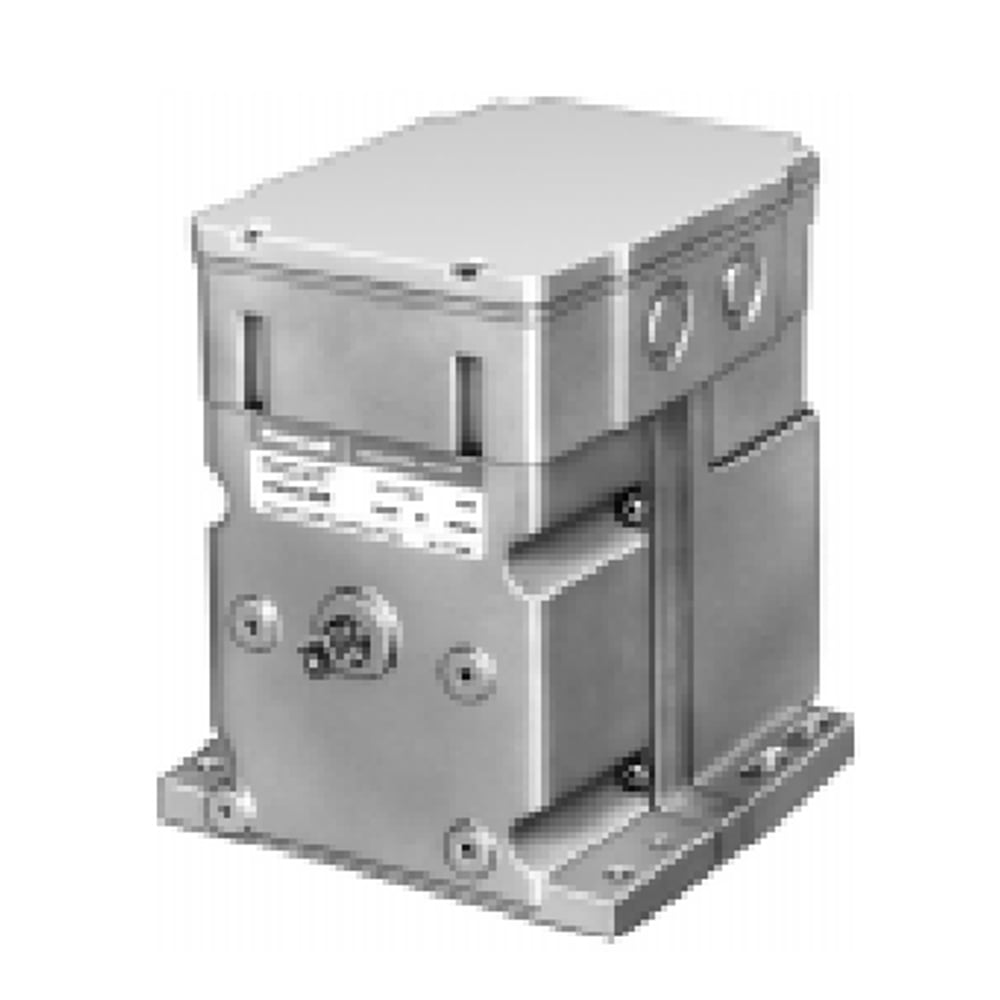

Models : M7281, M7282, M7284, M7285, M7294 Modutrol IV™ Motors
Applications :
The M7281, M7282, M7284, M7285, and M7294 are Electronic Modutrol® Motors used to control dampers and valves. These motors accept a current signal from an electronic controller to position a damper or valve at any position between open and closed.
