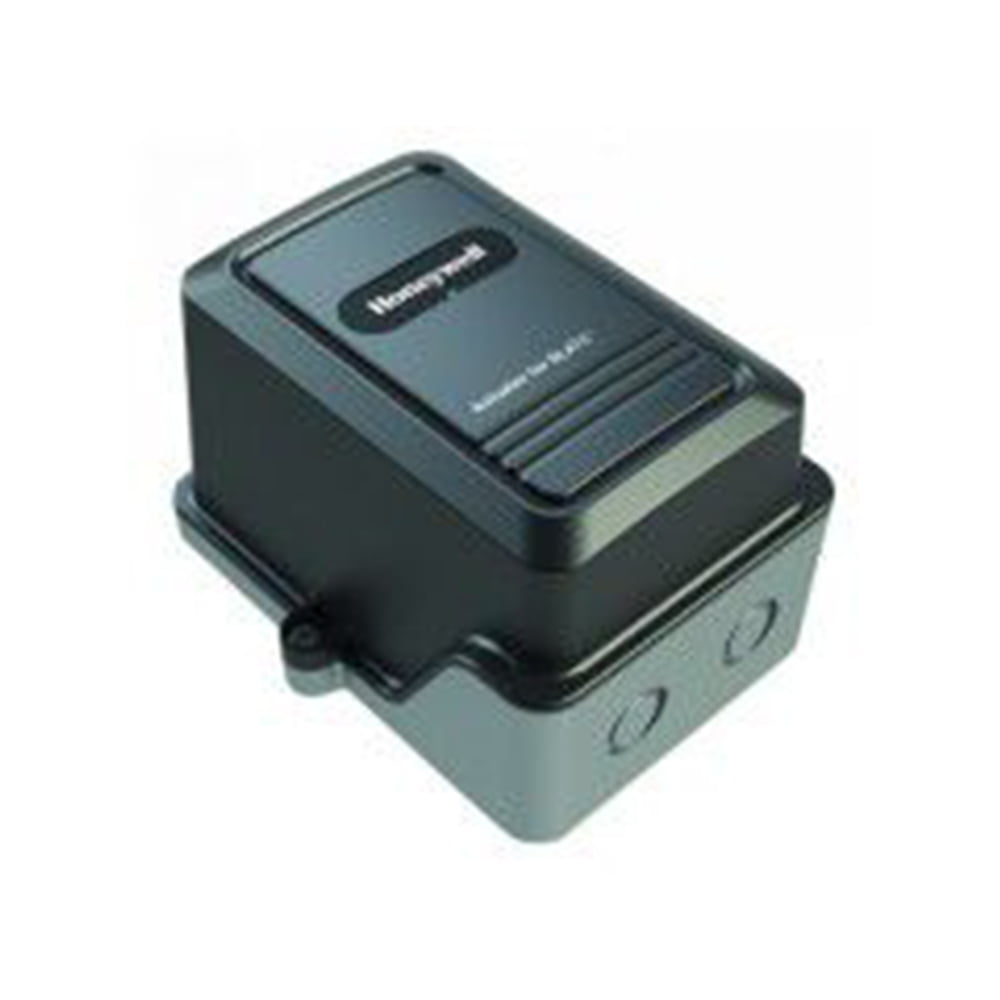

Honeywell Slate low torque actuator

The SLATE Low Torque Actuator series includes commercial- and industrial-grade 1/4-turn actuators available in 50 and 150 in/lb models with highly repeatable position accuracy designed specifically to integrate with the SLATE system. This series is well suited for the precise control of air and gas flow and can operate in a wide range of temperatures and environmental conditions

Offered in two different configuration options:

– NEMA 1 rated, operating in a temperature range of -18 to 158 °F (-28 to 70 °C) with 450 positions over a 90° span

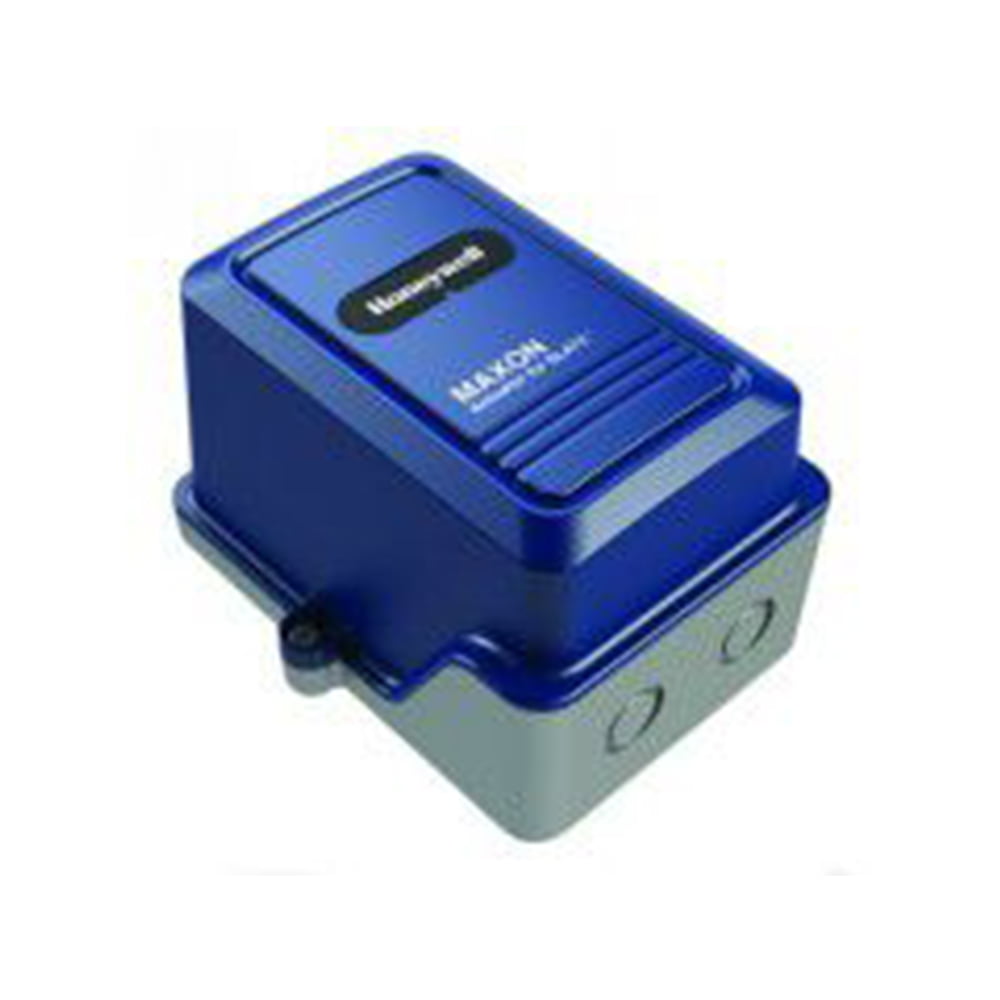

– NEMA 4 rated, operating in a temperature range of -40 to 158 °F (-40 to 70 °C) with 900 positions over a 90° span

Field-reversible clockwise and counterclockwise rotation operation

Internal temperature, valve status, health diagnostics, and error codes reporting

Robust, heavy-duty construction, continuous duty cycle-rated

Closed loop position control via Modbus RS-485 communications as an input to the SLATE Fuel Air Ratio Module, part R8001C6001

Dual 1/2-in knockout conduit connections

1/2-in keyed output shaft with a 1/8-in square key

Die-cast aluminum base with high-impact resistant, reinforced plastic cover

Meets UL353 Safety for Limit Controls

Meets UL1998 when used with R8001C6001 SLATE Fuel Air Ratio Module.
