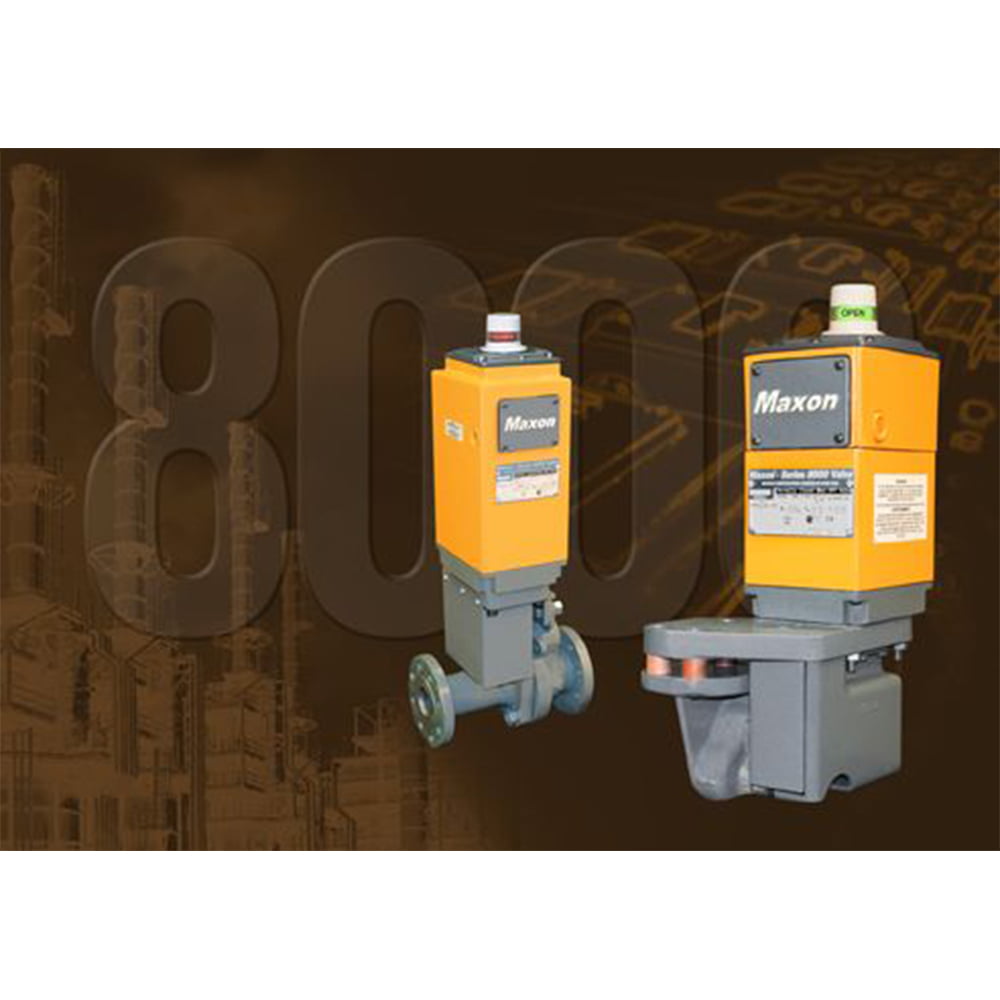

Series 8000 Air Actuated Valves for Liquid Surface

• Pneumatically actuated valves with powerful closing spring for reliable operation

• Compact design with integral solenoid, quick exhaust and position switches that protects components, simplifies piping and minimizes space requirements

• Factory Mutual (FM), CSA (6.5 C/I & 3.9) approved safety shut-off valves

• Hazardous Location approved: Intrinsically Safe for Class I, Div. 1 (and ATEX Zone 2/22 when ordered with the ATEX IS solenoid); Non-Incendive for Class I, Div. 2

• Top mounted 360-degree open-shut visual position indication

• Cast iron and carbon steel body assemblies with internal trim options to handle general purpose or severe fluids

• Ambient temperature ranges of -40°F (-40°C) to 140°F (60°C); Fluid temperature range of -40°F (-40°C) to 550°F (288°C)

• Application flexibility provided with 3/8″ (DN10) through 2″ (DN50) line sizes & line pressures up to 740 psig

• Actuator assemblies are field-replaceable and available in 120VAC 50/60 Hz, 240VAC 50/60 Hz, and 24VDC (with low power option), rated for NEMA 4, NEMA 4X and IP65

Category: Tags: ,

Features & Benefits:

  • MAXON Series 8000 Air Actuated Valves combine a unique space-saving design with a maintenance-free body and a replaceable actuator for easy installation and smooth, trouble-free operation.
  • The valve’s quick exhaust and powerful closing spring provide valve closure in less than one second and reliable, long-life operation.
  • Series 8000 Valve’s compact design simplifies piping design and minimizes space requirements.
  • The field-replaceable actuator provides easier maintenance and reduced downtime. The actuator can also be rotated around the valve body in 90° increments to fit your specific application requirements.
  • A unique stem seal design eliminates packing adjustments for reduced maintenance and minimized drag on closing.
  • The large top-mounted open-shut indicator is visible from all angles for easy proof of valve position. FM and CSA approvals for use as a fuel safety shut-off valve making easy integration with worldwide certifications.
