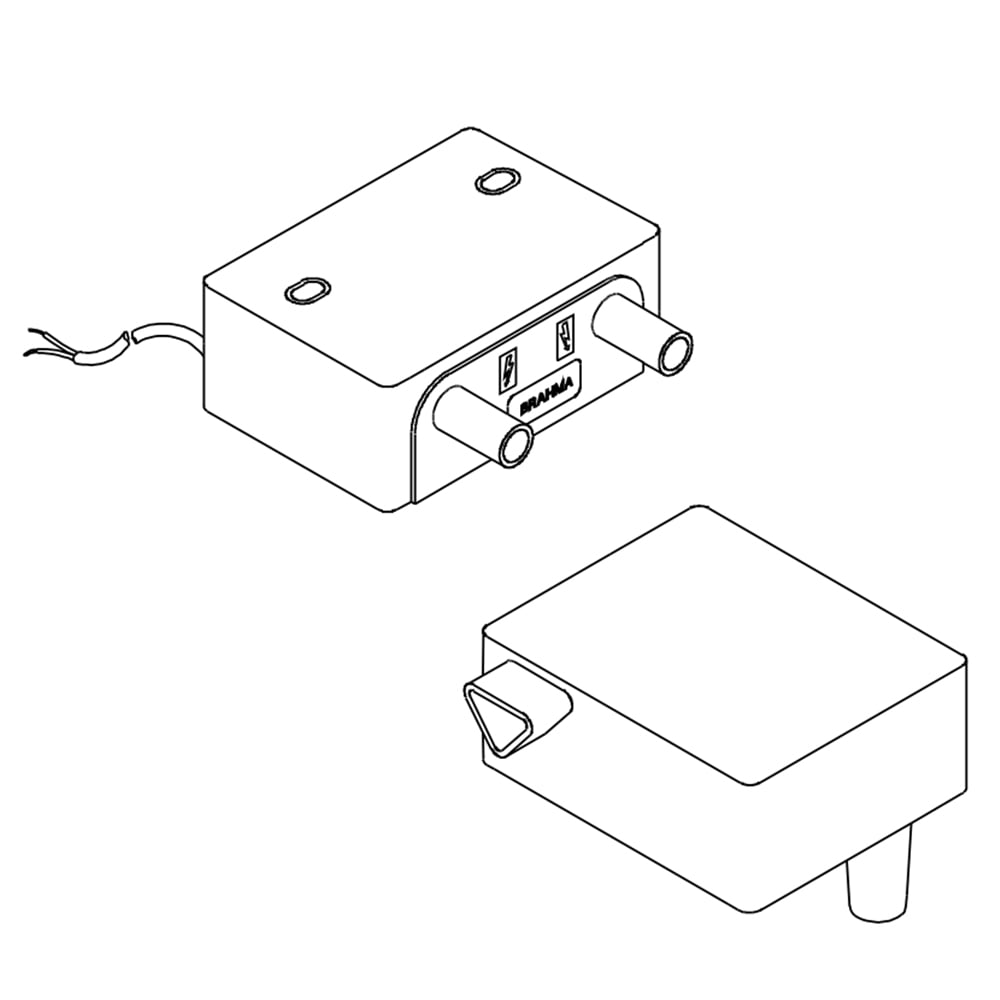

This range of electronic ignition transformers is characterized by extremely limited overall dimensions and is particularly suitable to equip water cleaners, forced draught burners for gas and light or heavy oil, for civil and industrial applications. The working principle is due to the generation of high frequency voltage by means of an electronic oscillator; the resulting voltage is then increased by using a winding with ferrite nucleus. In this way it is possible to reach output voltage values up to 15 KV. All types can be supplied with filter to minimize the emission of electromagnetic interference. In this way, this series of electronic transformers is in compliance with the directive 89/336/EEC without the use of external filters.
Download BrochureFeatures:
Followings are the main features of this range of transformers:
– available with inbuilt anti-emission filter;
– 100% duty cycle;
– limited weight and overall dimensions;
– high efficiency and ignition power;
– low consumption;
– single pole or dual pole high voltage output;
– different fixing and connecting systems.
